Name: Coolmay CX3G48M PLC Programmable Logic Controller 24DI 24DO Servo Motor Controller
Brand: Coolmay
Price: 1 USD

Brand Name : Coolmay

Model Number : CX3G-48M

Certification : CE

Place of Origin : Shenzhen,China

MOQ : 1 Unit

Price : Details Need To Be Negotiated

Payment Terms : TT,Paypal, Western Union, Credit Card

Supply Ability : 15000 Units Per Week

Delivery Time : 3-5 Days After Payment Confirmed

Packaging Details : Carton

Cutout Size : 192*98mm

Digital I/O : 24DI 24DO

Analog(Optional) : Max 8AI/4AO

High Speed Pulse : Support 8-axis

High Speed Counting : Support 6-channel

Com Ports : 2*RS485, 1*232,1*mini type B port

Contact Now

Coolmay CX3G-48M PLC Programmable Logic Controller 24DI 24DO Servo Motor Controller

Features

Highly integration. At most 24DI/24DO (transistor output,or relay output or mixed output), 8AI/4AO (Optional)
Comes with 2 PLC programming ports: Mini typeB usb port (speed of reading and downloading is more faster)
and RS 232 (8-hole mouse head female seat), normally have 2 RS 485 ports.
Support multi-channels high-speed counting and high-speed pulse.
Support special encryption ((Attention:Only supports 8-bit password encryption)
32K steps of program capacity, 32K power-failed holding registers which support interrupting, linear arc interpolation and PID auto-tuning.
The network module can be selected according to customer requirements to realize remote control.

Coolmay CX3G-48M PLC Programmable Logic Controller 24DI 24DO Servo Motor Controller

Specification

Model	CX3G-48M
Dimension	2009036mm
Cutout size	192*99mm
Installation	Fixed hole installation and DIN-Rail (35mm )

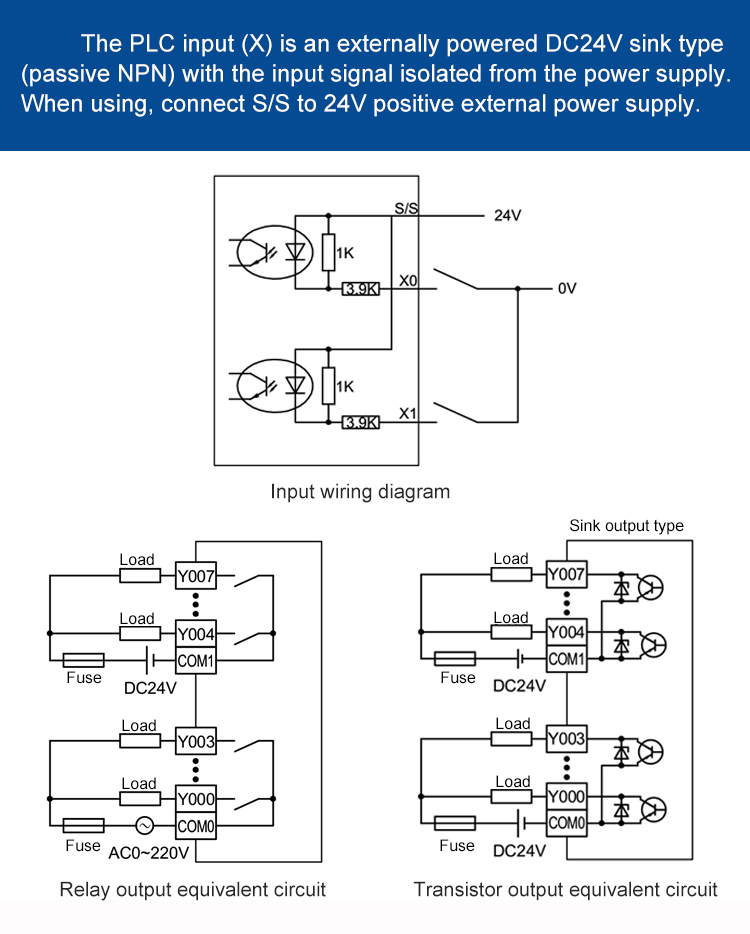

I/O level	Input: Passive NPN, public terminal isolated Transistor output: NPN Relay output: Normally open dry contact
Digital I/O	24DI/24DO
DO type	Relay(MR) or transistor(MT) or mixed(MRT) (Relay output: max load 5A/ transistor output: max load 500mA)
High speed counting	Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10 KHz
High speed pulse	8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz High-speed counting + high-speed pulse < 480KHz
Analog I/O (optional)	12AI/8AO
AI type (optional)	Type E/E_/K/K_/S/S_/T/T_/J/J_ thermocouple / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/ 0~10V/ 0~5V/ 0-20mA/ 4-20mA/ -5V~5V/ -10V~10V
AO type (optional)	0~10V/ 0-~5V/ 0~20mA/ 4~20mA -5~5V/ -10~10V (2DA for 1 minus voltage)
Default	1 Mini type B USB programming port, 1 RS232 programming port (Interface terminal is mouse female port with 8 holes), 2 RS485 COM ports
Optional	Default 2 RS485 COM ports can be customized as 1 RS485, 1 RS232 COM ports, or 1 RS485 COM port, 1 CAN (2.0A/B), or 1 RS232 COM port, 1 CAN (2.0A/B) CX3G-48M can add Ethernet port.
Software	Compatible with WORKS 2

Coolmay CX3G-48M PLC Programmable Logic Controller 24DI 24DO Servo Motor Controller

Purchase Note

It is Suggested to use WORKS 2 For CX3G PLC, which it is better compatible.
ODM and OEM are support if order can be reach request quantity.
More details you can offer as DI/DO,AI/AO, high speed requirements, com ports...... ,it will be more fast to decide final model.
If you need special cable, please advise.
